PILOT MECHANICAL P1101 Truck Drivers Seat for DAF Iveco MAN Mercedes Renault Scania Volvo

Type: PILOT

Part Number: C-P1101M80B

Applications: Trucks (with integral seat belts). We may need to supply you with a fitting kit.

 Price: £ Call us for an unbeatable deal! on 01905 795955

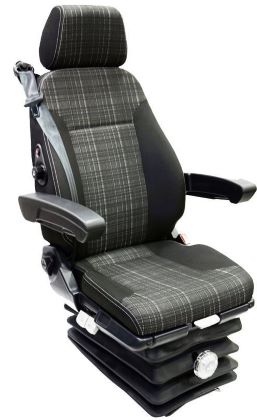

C-P1101M80B-xl-old-trim

Features:

    • Mechanical suspension
    • Adjustable headrest
    • Integral 3 point seat belt (Right hand)
    • Testing to ECE R14, ECE R25, M2/N2, M3/N3
    • Weight adjustment - up to 150kg
    • 60mm seat height and tilt adjustment
    • Backrest angle adjustment
    • Fore and aft adjustment - 190mm
    • Seat cushion depth adjustment
    • Adjustable lumbar support
    • Right hand controls
    • 80mm vertical suspension stroke
    • Two tone fabric (Not as shown) See new trim below

      C-P1101A80-new-trim-2

Optional Extras:

    • Slide rail adapter brackets (meet N3 requirements)
    • Left hand belt (Call for details)
    • Pair of adjustable pivoting armrests

Dimensions (Mid stroke & height): Click here for diagram

a - Width - 505mm, 640mm inc. Armrests
b - Slide Rail Centres - 216mm (variable with optional kit)
c - Depth - 603mm/663mm with adjustment
d - SIP Position - TBC
e - Height - 895mm (1115 inc. Headrest)
f - SIP to ISO 5353 - 340mm
g - Slide Rail fore & aft - 280/325mm
h - Squab Height - TBC
