KAB 714B 179621 Truck Drivers Seat for DAF Iveco MAN Mercedes Renault Scania Volvo

Type: 714B

Part Number: 179621

Applications: Trucks (with integral seat belts). We may need to supply you with a fitting kit.

 Price: £ Call us for an unbeatable deal! on 01905 795955

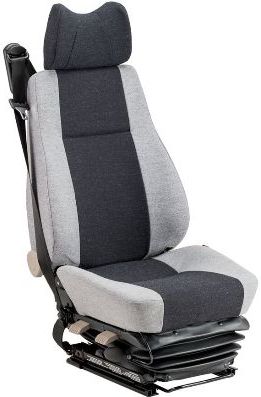

714B Air suspension truck drivers seat

Features:

    • Air suspension with double acting hydraulic damper
    • Adjustable headrest
    • Integral 3 point seat belt (Right hand)
    • Belt meets N2 and M2 requirements
    • Automatic adjustment for driver, weight from 50-120kg
    • 100mm seat height and tilt adjustment
    • Backrest angle adjustment
    • Fore and aft adjustment - 160mm
    • Suspension cover
    • Air lumbar support
    • Right hand controls
    • 75mm vertical suspension stroke
    • Two tone charcoal / grey fabric

Optional Extras:

    • Slide rail adapter brackets (meet N3 requirements)
    • Left hand belt (Call for details)
    • Pair of adjustable pivoting armrests Pt.No.182327

Dimensions (Mid stroke & height): Click here for diagram

a - Width - 505mm, 600mm inc. Armrests
b - Slide Rail Centres - 280mm (variable with optional kit)
c - Depth - 635mm
d - SIP Position - 260mm
e - Height - 885mm
f - SIP to ISO 5353 - 310mm
g - Slide Rail fore & aft - 280/355mm
h - Squab Height - 270mm
