KAB 414B 188116 Truck Drivers Seat for DAF Iveco MAN Mercedes Renault Scania Volvo

Type: 414B

Part Number: 188116

Applications: Trucks (with integral seat belts). We may need to supply you with a fitting kit.

 Price: £ Call us for an unbeatable deal! on 01905 795955

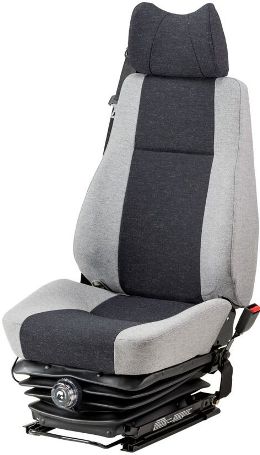

414B Mechanical suspension truck drivers seat

Features:

      • Mechanical suspension with double acting hydraulic damper
      • Integral 3 point seat belt (Right hand)
      • Belt meets N3 and M3 requirements
      • Headrest
      • Manual adjustment for driver, weight from 50-120kg
      • 100mm seat height and tilt adjustment
      • Backrest angle adjustment
      • Fore and aft adjustment - 160mm
      • Suspension cover
      • Air lumbar support
      • Right hand controls
      • 75mm vertical suspension stroke
      • Two tone charcoal / grey fabric

Optional Extras:

      • Slide rail adapter brackets (meet N3 requirements)
      • Pair of adjustable pivoting armrests Pt.No.182327

Dimensions (Mid stroke & height): Click here for diagram

a - Width - 505mm, 600mm inc. Armrests
b - Slide Rail Centres - 280mm (variable with optional kit)
c - Depth - 635mm
d - SIP Position - 260mm
e - Height - 885mm
f - SIP to ISO 5353 - 310mm
g - Slide Rail fore & aft - 280mm
h - Squab Height - 270mm
