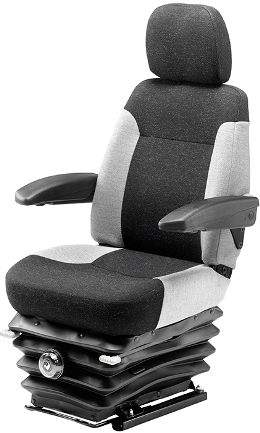

KAB 411 165167 Constrution Seat for Case Caterpillar Daewoo Hitachi JCB Komatsu Manitou Samsung Terex Volvo
Type: 411
Part Number: 165167
Applications: Cranes, Dozers, Excavators, Wheel Loaders. We may need to supply you with a fitting kit.
Price: £ Call us for an unbeatable deal! on 01905 795955
Features:
- Low frequency mechanical suspension
- One double acting hydraulic damper
- Front controls
- Adjustable headrest
- Adjustable pivoting armrests
- Automatic adjustment for driver, weight from 50-120kg
- 60mm seat height and tilt adjustment
- Backrest angle adjustment
- Fore and aft adjustment - 160mm
- Suspension cover
- 5 position lumbar support
- 100mm vertical suspension stroke
- Charcoal fabric (not as shown)
Optional Extras:
- Seat belt (retractable) Pt.No.157705
Dimensions (Mid stroke & height): Click here for diagram
a - Width - 490mm, 600mm inc. Armrests
b - Slide Rail Centres - 280mm (variable with kit)
c - Depth - 580mm
d - SIP Position - 175mm
e - Height - 780mm
f - SIP to ISO 5353 - 330mm
g - slide Rail fore & aft - 280 / 304mm
h - Squab Height - 285mm
