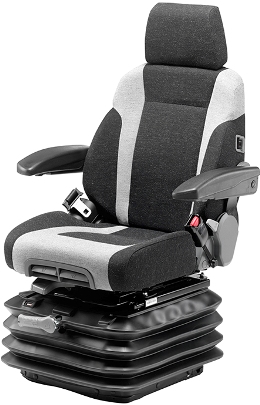

KAB 61/K1 199451 Constrution Seat for Case Caterpillar Daewoo Hitachi JCB Komatsu Manitou Samsung Terex Volvo
Type: 61K1
Part Number: 199451
Applications: Wheel Loaders, Dozers, Dump Trucks. We may need to supply you with a fitting kit.
Price: £ Call us for an unbeatable deal! on 01905 795955
Features:
- Mechanical Suspension
- Mid Back
- Fore/Aft Isolator
- Heaters (24V)
- 50mm seat cushion length adjustment
- 7 and a half degree seat tilt adjustment in 3 positions
- Manual adjustment for driver weight,with extended weight range for operators of 50 - 175kg
- 160mm Vertical suspension stroke
- Height Adjustment - 60mm
- Headrest
- Lumbar Support
- Backrest Angle Adjustment
- Sliderails
- Fabric Trim - Two tone charcoal / grey (as shown)
Optional Extras:
- Comfort Armrests Pt.No.198219
- Lap belt (retractable) Pt.No.196432
- Secondary Damper Pt.No.196443
Dimensions (Mid stroke & height): Click here for diagram
a - Width - 490mm, 683mm inc. Armrests
b - Slide Rail Centres - 280mm
c - Depth - 578mm
d - SIP Position - TBA
e - Height - 813/994mm
f - SIP to ISO 5353 - 375mm
g - Slide Rail fore & aft - 280mm
h - Squab Height - TBA
