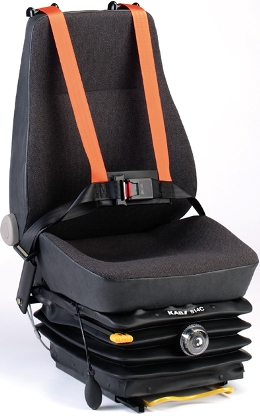

KAB 514C 169556 Constrution Seat for Case Caterpillar Daewoo Hitachi JCB Komatsu Manitou Samsung Terex Volvo
Type: 514C
Part Number: 169556
Applications: Dump Trucks, Crash Cushions. We may need to supply you with a fitting kit.
Price: £ Call us for an unbeatable deal! on 01905 795955
Features:
- Low frequency mechanical suspension
- Double acting hydraulic damper
- Performance to IS0 7096 class 3 & class 4
- 100mm vertical suspension stroke
- Pneumatic lumbar support
- Full harness seatbelt * (4 point)
- 60mm seat height and tilt adjustment
- Backrest angle adjustment
- Fore & aft adjustment 180mm
- Suspension cover
- Manual adjustment for driver weight from 50 - 120kg
- Double locking heavy duty slide-rails
- Forward controls
- High quality grey fabric with vinyl side trim
Optional Extras:
- Adjustable headrest Pt.No.169730
- Tip up armrests Pt.No.182327
Dimensions (Mid stroke & height): Click here for diagram
a - Width - 490mm, 600mm inc. Armrests
b - Slide Rail Centres - 280mm
c - Depth - 610mm
d - SIP Position - 235mm
e - Height - 928mm
f - SIP to ISO 5353 - 368mm
g - Slide Rail fore & aft - 304mm
h - Squab Height - 325mm
